How to: Deployment Groups and Target Machines Capabilities Mapping on Azure DevOps

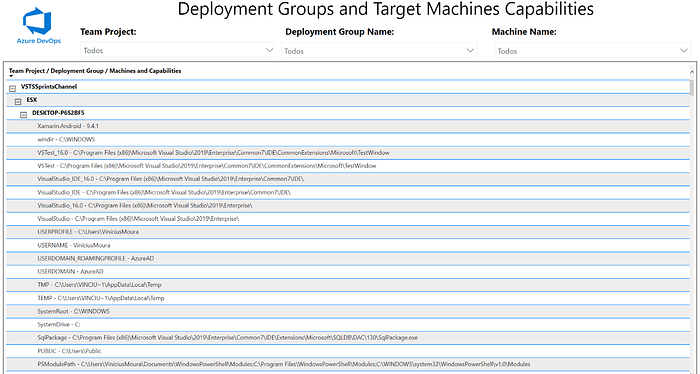

This script and report extract all Deployment Groups and Target Machines Capabilities within the Azure DevOps organization

An original script is available on my GitHub repository. See below this script:

Let’s go understand each command used.

1. PowerShell script will receive the following parameters:

• $PAT = Personal Access token to connect on Azure DevOps;
• $Organization = Organization URL to list all Deployment Groups and respective Target Machines;
• $Connstr = connection string to Azure SQL Database that stores the report information. To create this report, it’s necessary to create previously a Azure SQL Server and Database and run a script below:

2. Projects List = uses this REST API to list all Team Projects on Azure DevOps organization

$AzureDevOpsAuthenicationHeader = @{Authorization = 'Basic ' + [Convert]::ToBase64String([Text.Encoding]::ASCII.GetBytes(":$($PAT)")) }
$UriOrganization = "https://dev.azure.com/$($Organization)/"
$UriOrgRelease = "https://vsrm.dev.azure.com/$($Organization)/"
$uriProject = $UriOrganization + "_apis/projects?`$top=500"
$ProjectsResult = Invoke-RestMethod -Uri $uriProject -Method get -Headers $AzureDevOpsAuthenicationHeader
foreach ($teamproject in $ProjectsResult.value)
{
    Write-Host $project.name
}

3. Deploymentgroups List = uses this REST API to list all Deployment Groups on each Project

$uriDeploymentGroup = $UriOrganization + "$($teamproject.name)/_apis/distributedtask/deploymentgroups"
$DeploymentGroupResult = Invoke-RestMethod -Uri $uriDeploymentGroup -Method Get -Headers $AzureDevOpsAuthenicationHeader
foreach ($deploymentGroup in $DeploymentGroupResult.value)
{
    Write-Host $deploymentGroup.name
}

4. Deploymentgroups Get = use this REST API to get all Target Machines on each Deployment Group

$uriDeploymentGroupMachines = $UriOrganization + "$($teamproject.name)/_apis/distributedtask/deploymentgroups/$($deploymentGroup.id)"
$DeploymentGroupMachinesResult = Invoke-RestMethod -Uri $uriDeploymentGroupMachines -Method Get -Headers $AzureDevOpsAuthenicationHeader
foreach ($dgMachine in $DeploymentGroupMachinesResult.machines)            {
    Write-Host $dgMachine.agent.name
}

5. Targets Get = use this REST API to get all Capabilities on each Target Machines

$uriMachineCapabilities = $UriOrganization + "$($teamproject.name)/_apis/distributedtask/deploymentgroups/$($deploymentGroup.Id)/targets/$($dgMachine.agent.id)?`$expand=capabilities&api-version=6.0-preview.1"
$MachineCapabilitiesResult = Invoke-RestMethod -Uri $uriMachineCapabilities -Method Get -Headers $AzureDevOpsAuthenicationHeader
$machCap = $MachineCapabilitiesResult.agent.systemCapabilities | Get-Member | where {$_.MemberType -eq 'NoteProperty'}
Foreach ($cap in $machCap)
{
    Write-Host $cap.Name
    Write-Host       $MachineCapabilitiesResult.agent.systemCapabilities.$($cap.Name)
}

6. After extracting all Deployments Groups and Target Machines, this information is stored in a table in Azure SQL.

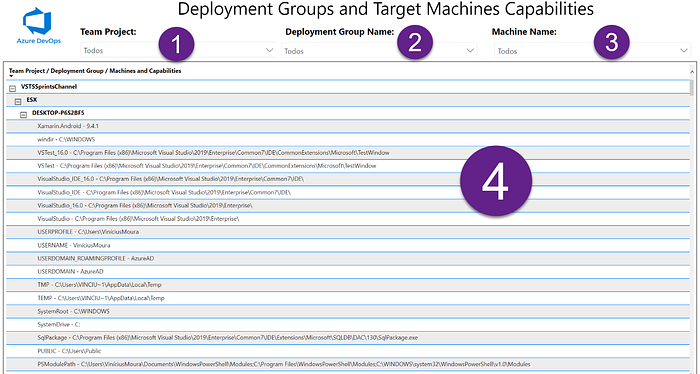

6. After inserting information into a table, I connected this database on Power BI:

• Team Project (1) = Filter report using Team Project field;
• Deployment Group Name (2) = Filter report using Deployment Group Name field;
• Machine Name (3) = Filter report using Machine Name field;
• Information (4) = List all information about Projects, Deployment Groups, Target Machines, and Capabilities.
