How to: Environments, Approvals, and Checks Mapping on Azure DevOps

This script and report extract all Environments and respective Approvals, and Checks to Multi-Stage Pipeline YAML on each Team Project within Azure DevOps

An original script is available on my GitHub repository. See below this script:

Let’s go understand each command used.

1. PowerShell script will receive the following parameters:

• $PAT = Personal Access token to connect on Azure DevOps;
• $Organization = Organization URL to list all Environments, Approvals, and Checks on Azure DevOps organization;
• $Connstr = connection string to Azure SQL Database that stores the report information. To create this report, it’s necessary to create previously a Azure SQL Server and Database and run a script below:

2. Projects List = use this REST API to list all projects on the Azure DevOps organization.

$AzureDevOpsAuthenicationHeader = @{Authorization = 'Basic ' + [Convert]::ToBase64String([Text.Encoding]::ASCII.GetBytes(":$($PAT)")) }
$UriOrganization = "https://dev.azure.com/$($Organization)/"
$uriProject = $UriOrganization + "_apis/projects?`$top=500"
$ProjectsResult = Invoke-RestMethod -Uri $uriProject -Method get -Headers $AzureDevOpsAuthenicationHeader
Foreach ($project in $ProjectsResult.value)
{
    Write-Host $project.name
}

3. Environments List = use this REST API to list all Environments on each Team Project

$uriEnvironments = $UriOrganization + "$($project.id)/_apis/distributedtask/environments?api-version=6.1-preview.1"
$EnvironmentsResult = Invoke-RestMethod -Uri $uriEnvironments -Method get -Headers $AzureDevOpsAuthenicationHeader
Foreach ($environment in $EnvironmentsResult.value)
{
    Write-Host $environment.name
}

4. Check Configurations Query = use this REST API to list all Approvers and Checks on each Environment

$body = @(
          @{
              type="queue"
              id="1"
              name="Default"
           },
          @{
              type="environment"
              id="$($environment.id)"
              name="$($environment.name)"
           }
          ) | ConvertTo-Json
$uriEnvironmentChecks = $UriOrganization + "$($project.id)/_apis/pipelines/checks/queryconfigurations?`$expand=settings&api-version=6.1-preview.1"
$EnvironmentChecksResult = Invoke-RestMethod -Uri $uriEnvironmentChecks -Method Post -Body $body -Headers $AzureDevOpsAuthenicationHeader -ContentType application/json
Foreach ($envcheck in $EnvironmentChecksResult.value)
{
    Write-Host $envcheck.type.name
}

5. After extract all Environments, Approvals, and Checks, this information is stored in a table in Azure SQL.

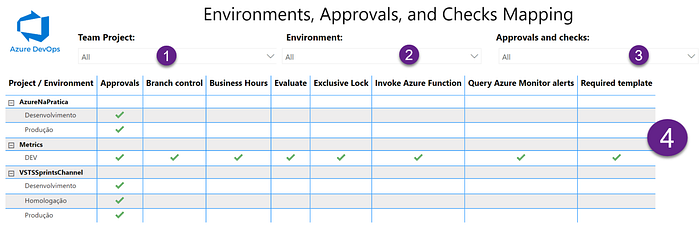

6. After insert information into a table, I connected this database on Power BI:

• Team Project (1) = Filter report using Team Project field;
• Environment (2) = Filter report using Environment field;
• Approvals and Checks (3) = Filter report using Approvals and Checks types.
• Report Information (4) = List all information about Environments, Approvals, and Checks. If the respective approval and check appear in this mapping, the same will be marked (green ticks on a grid).

One more time, I wanted to thank

Ewerton Rodrigues Jordão

and

Gustavo Scatolin Bergamin

for their great help with PowerShell and

Willy-Peter Schaub

for their great ideas with new reports.
