How to: List all pools, agent and capabilities of self-hosted agents

This script list all pools, agents and capabilities on Azure DevOps organization

An original script is available on my GitHub repository. See bellow this script:

Let’s go understand each used command.

1. PowerShell script will receive the following parameters:

• $PAT = Personal Access token to connect on Azure DevOps;
• $Organization = Organization URL to list all users and permissions.

2. Get Agent Pools = use this command to list all Agent Pools on Azure DevOps organization.

$UriPools = $UriOrganization + '/_apis/distributedtask/pools?api-version=6.0'
$PoolsResult = Invoke-RestMethod -Uri $UriPools -Method get -Headers $AzureDevOpsAuthenicationHeader
Foreach ($pool in $PoolsResult.value)
{
    Write-Host $pool.name
}

3. Get Agents = use this command to list all agents and capabilities on the respective pool.

$uriAgents = $UriOrganization + "_apis/distributedtask/pools/$($pool.Id)/agents?api-version=6.0"
$AgentsResults = Invoke-RestMethod -Uri $uriAgents -Method get -Headers $AzureDevOpsAuthenicationHeader
Foreach ($agent in $AgentsResults.value)
{
    $uriSelfHostedAgentCapabilities = $UriOrganization + "_apis/distributedtask/pools/$($pool.Id)/agents/$($agent.Id)?includeCapabilities=true&api-version=6.0"

    $SelfHostedAgentCapabilitiesResult = Invoke-RestMethod -Uri $uriSelfHostedAgentCapabilities -Method get -Headers $AzureDevOpsAuthenicationHeader

    Foreach ($shac in $SelfHostedAgentCapabilitiesResult)
    {
        $Capabilities = $shac.systemCapabilities | Get-Member | where {$_.MemberType -eq 'NoteProperty'}

        Foreach ($cap in $Capabilities)
        {
            $SelfHostedAgentCapabilities += New-Object -TypeName PSObject -Property @{
           PoolName=$pool.name
           AgentName=$agent.name
           CapabilityName=$cap.Name
           CapabilityValue=$($shac.systemCapabilities.$($cap.Name))
                    }
        }
     }
}

4. After executing the script on PowerShell, will be generated a JSON file that lists all pools, agents, and your respective capabilities.

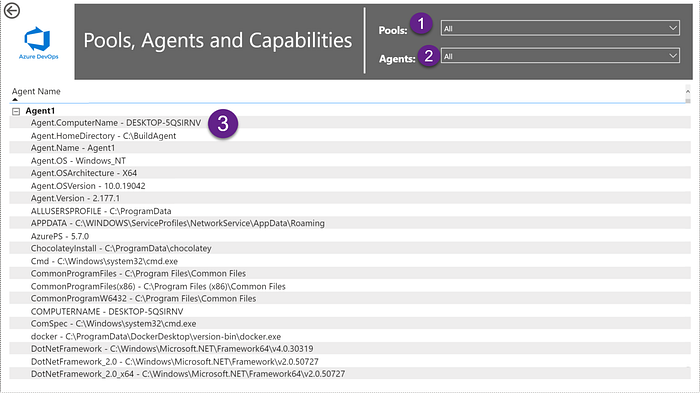

5. After creating JSON, I connected it on Power BI, as shown below:

• Pools (1): filter a respective poll to agents;
• Agents (2): list respective capabilities to a specific agent;
• Capabilities (3): list all capabilities on a respective agent.
